JLG 800AJ

Articulated Boom Lift – up to 24 m Diesel

The 800AJ provides 24 m platform height, 15.8 m outreach, and a 227 kg capacity—perfect for complex high-reach work around obstacles. Best for: outdoor construction, façade maintenance, tree trimming, rough terrain.

Key Features

  1. 360° platform rotation with articulating jib for versatile positioning.
  2. 4WD/oscillating axle with up to 45 % gradeability for rough terrain.
  3. Spacious deck (0.9 × 2.4 m) with onboard power and workstation options.

Get a Quote Chat on Wh​​atsapp


₹ 0.00 ₹ 0.00

This combination does not exist.

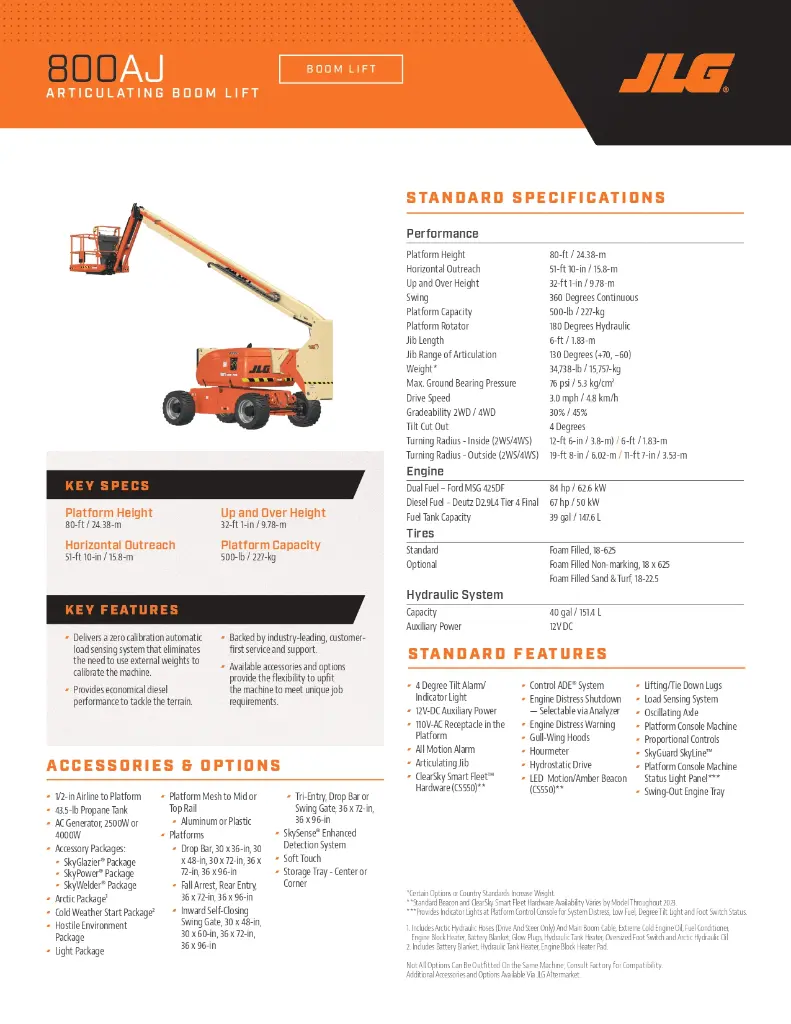

Specification Imperial Metric
Max Working Height 80 ft 24.4 m
Capacity 500 lb 227 kg
Driving Propulsion Diesel Diesel
Workload Capacity 500 lb 227 kg
Lifting Propulsion Articulating/Telescopic Boom Articulating/Telescopic Boom
Horizontal Reach 51 ft 10 in 15.8 m
Transport Dimensions 36 ft 6 in × 8 ft 2 in × 9 ft 10 in 11.13 m × 2.49 m × 3 m
Weight 34,738 lb 15,757 kg
